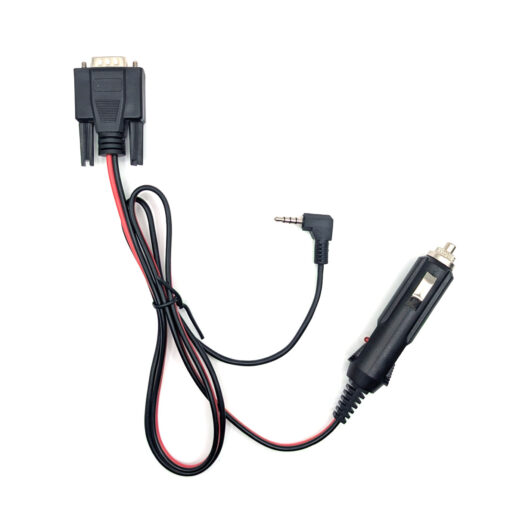

Connects a tracker to a handheld radio with a 4-conductor 3.5mm jack. This includes Yaesu models without the threaded, waterproof plug. Power is provided through a 1-amp fused cigarette lighter plug with power indicator LED, or optionally an unfused Anderson Power Pole connector. Cable length is 19″ / 50 cm.
Wiring:
| D-Sub | 3.5mm | Power |
|---|---|---|
| 1 | Ring 1 | |
| 5 | Tip | |
| 6 | Sleeve | Gnd |
| 7 | + |
| Weight | 0.2 lbs |
|---|
