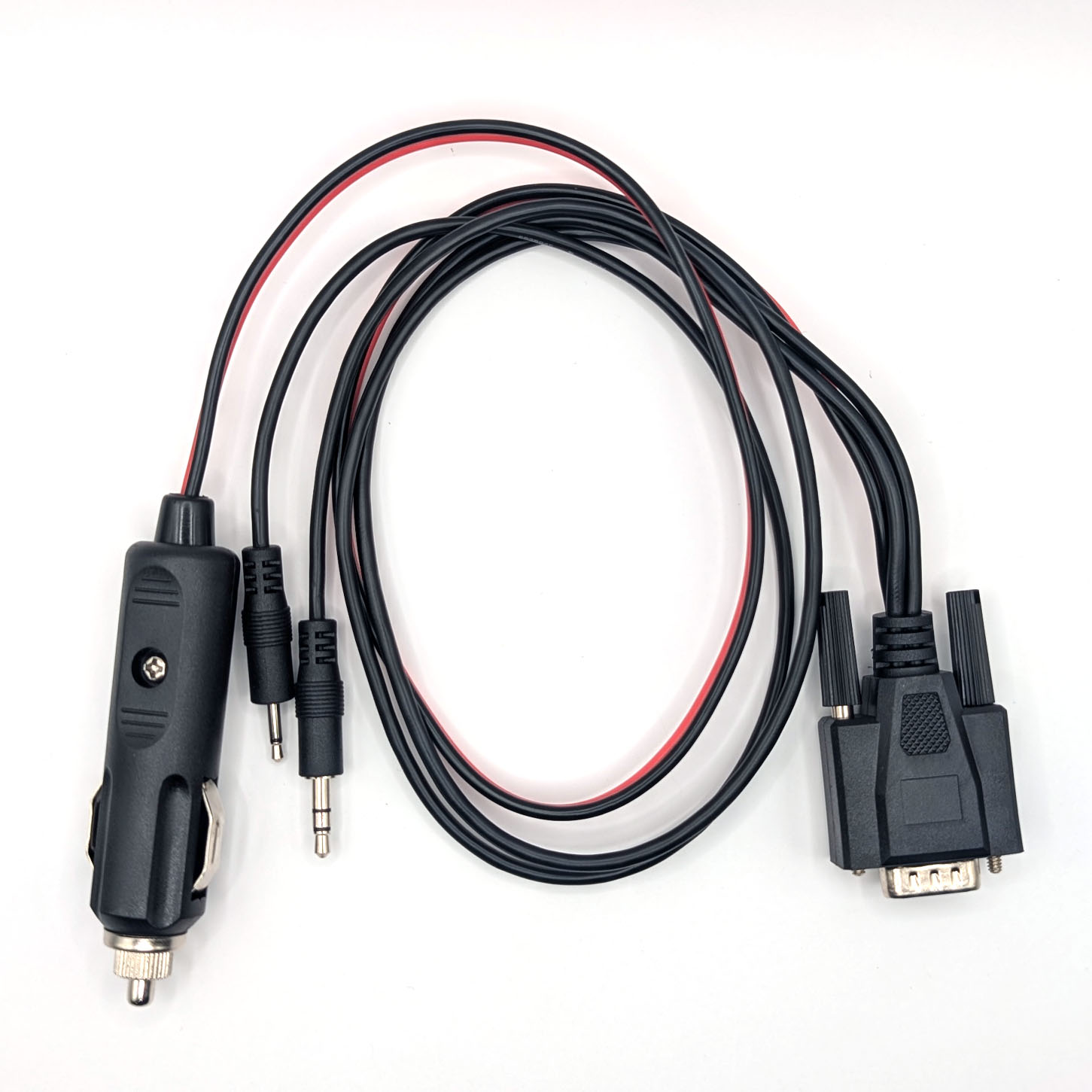

Connects our standalone trackers to a handheld radio with a 3.5mm stereo mic jack and 2.5mm mono earphone jack. This configuration is used on most Kenwood handhelds and Chinese imports, including the Puxing PX-777. Power is provided through a 1-amp fused cigarette lighter plug with power indicator LED, or optionally an unfused Anderson Power Pole connector. Cable length is 19″ / 50 cm.
Wiring:
| D-Sub | 3.5mm | 2.5mm | Power |
|---|---|---|---|
| 1 | Ring | ||
| 3 | Sleeve | ||
| 5 | Tip | ||
| 6 | Gnd | Gnd | |
| 7 | + |
| Weight | 0.2 lbs |
|---|
