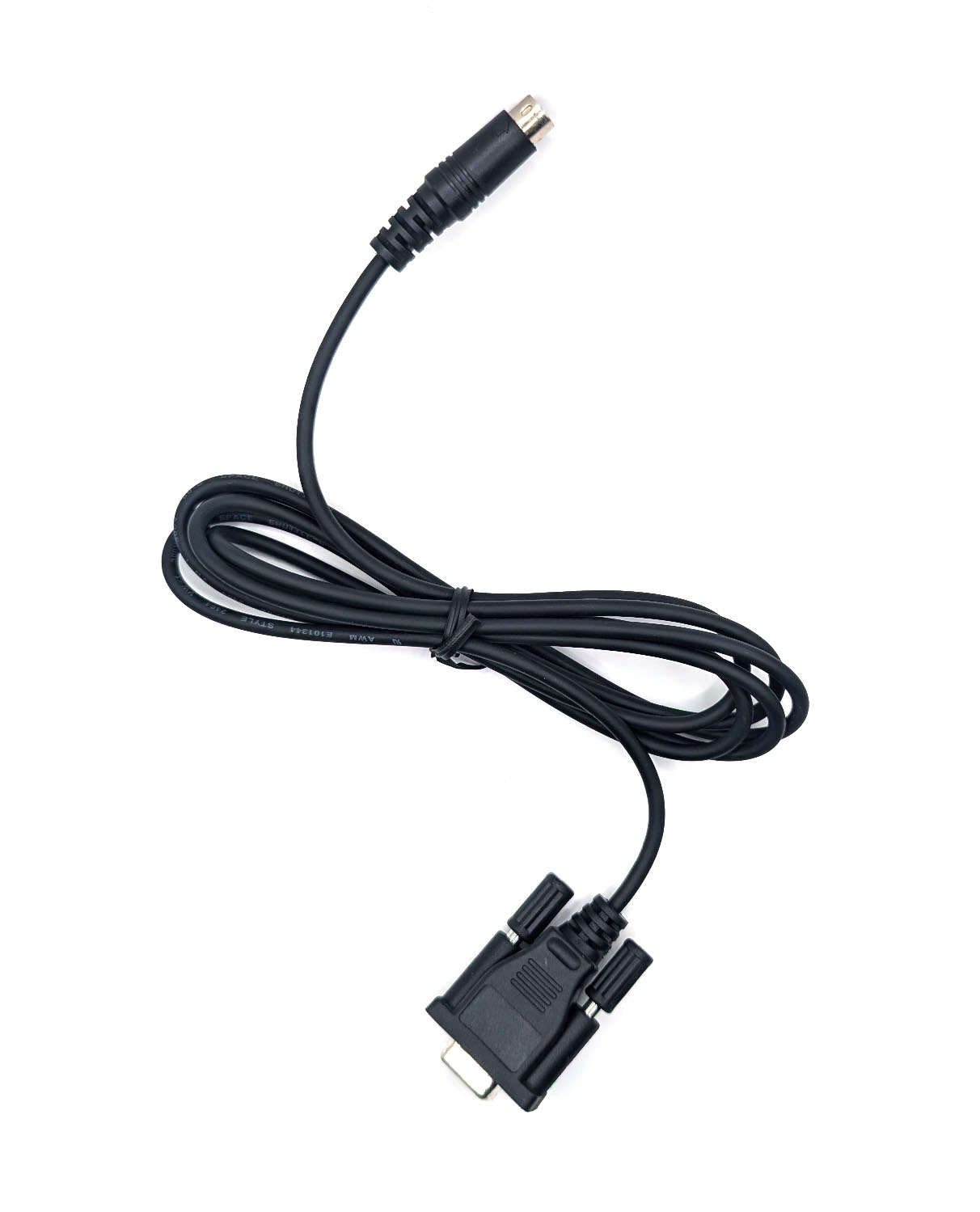

Female DB9 to 8-pin mini-DIN cable for low speed data with the ICOM ID-800 D-STAR radio. This cable is equivalent to ICOM part number OPC-1384, and is used for low-speed data, not radio programming. We carry a low-profile male-male null modem adapter that allows this cable to be used with a GPS receiver for DPRS operation.
Pins 2, 3, and 5 on the DB9 are connected to pins 7, 4, and 2, respectively, on the mini-DIN connector.
| Weight | 0.3 lbs |
|---|
