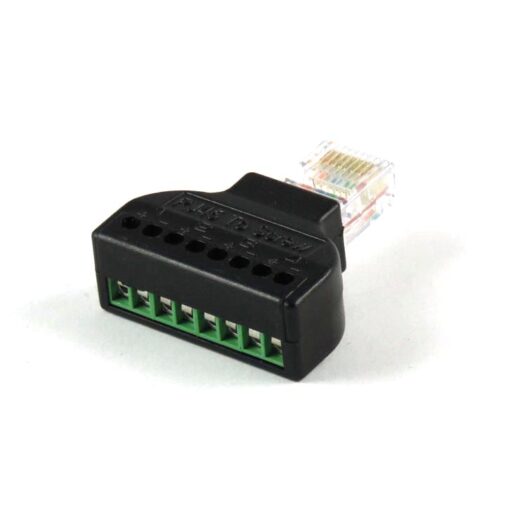

This product has an RJ45 connector on one end and expands to a screw terminal block. This allows you to connect the repeater to any style radio cable. The adapter is approximately 1.5 inches long by 1.25 inches wide and 0.5 inches tall.
Compatible with our ADS-SR1 simplex repeater and EchoBridge RoIP appliance.
The pin connections for the repeater is:
Screw Block — RJ-45
1+ — 1 SQL/COR
1- — 2 GND
2+ — 3 Audio Out
2- — 4 GND
3+ — 5 PTT
3- — 6 Audio In
4+ — 7 NC
4- — 8 Power in
| Weight | 0.1 lbs |
|---|
