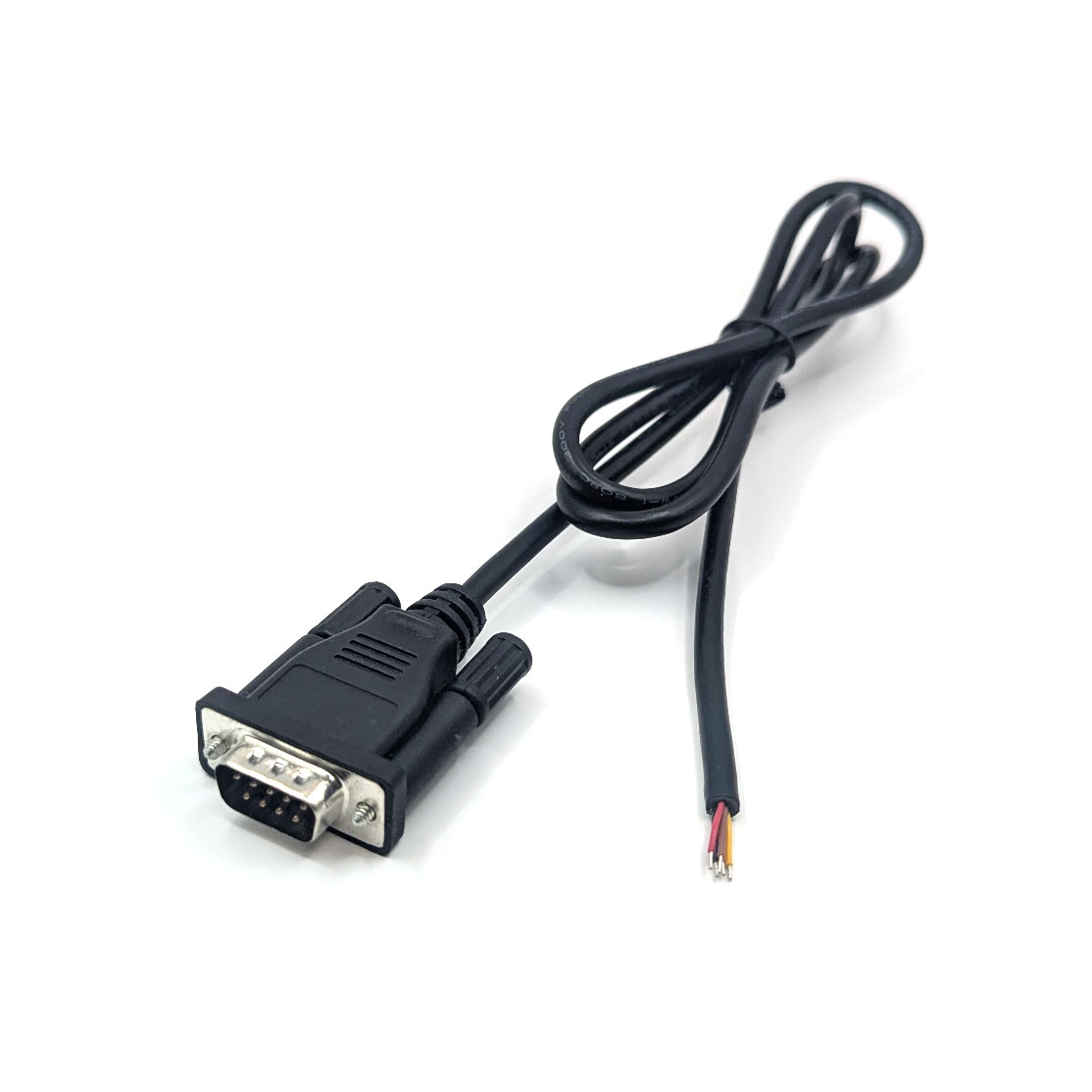

We had these cables custom made for some future projects. They’re 1 meter long, with a male DE9 (DB9) connector on one end and five stripped and tinned wires on the other end. The outer jacket is stripped to 10mm, and the individual conductors are stripped and tinned to 2 +/- 0.5mm. Outer jacket diameter is 4mm. The cable is wired as follows:
| DB9M | Cable |
| Pin 2 | Green |
| Pin 3 | White |
| Pin 4 | Red |
| Pin 5 | Black |
| Pin 7 | Brown |
| Weight | 0.15 lbs |
|---|
