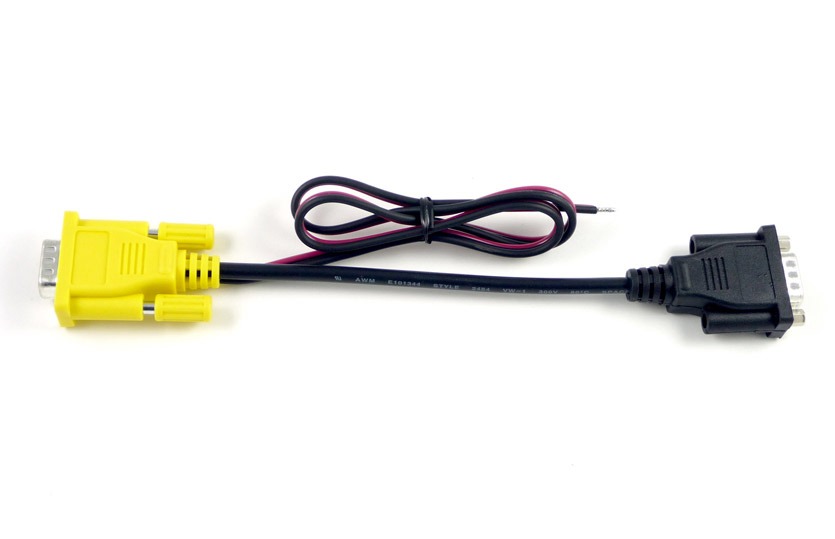

This cable is designed to simplify connection of the T2-301 or T3-301 TNC/radio combination. The yellow end connects to the tracker module, and the black end has the same pinouts as the OT2m/OT3m, allowing direct connection of a GPS receiver, PC, Y-splitter cable, etc.
Power is provided to the tracker through the red and black power lead. Anderson Powerpole connectors or a cigarette lighter plug with LED indicator are available as options below.
Power lead length is 50 cm / 19", data lead length is 12 cm / 5".
This cable should not be used with the FC-301/D radio without the tracker board installed.
| Pin | Function |
| 1 | No Connection |
| 2 | Port A Data In |
| 3 | Port A Data Out |
| 4 | +5v Power Out |
| 5 | Ground |
| 6 | No Connection |
| 7 | Port B Data Out |
| 8 | Port B Data In |
| 9 | No Connection |
Available Options:
Power connector:
